Security Tablet MountProduct model: TP01
Tablet & Printer Mounting Stand
Black metal TP01 POS stand with one adjustable tablet mount and a detachable printer platform for compact checkout installations.
- Adjustment
- Single adjustable tablet mount
- Mount function
- Detachable printer platform
- Order options
- 100 × 100 mm VESA interface with custom layouts available
Package includes: Security Tablet Mount only. Tablet shown for fit reference is not included.
Product detail
TP01 tablet-and-printer stand with one display frame and a lower equipment shelf.

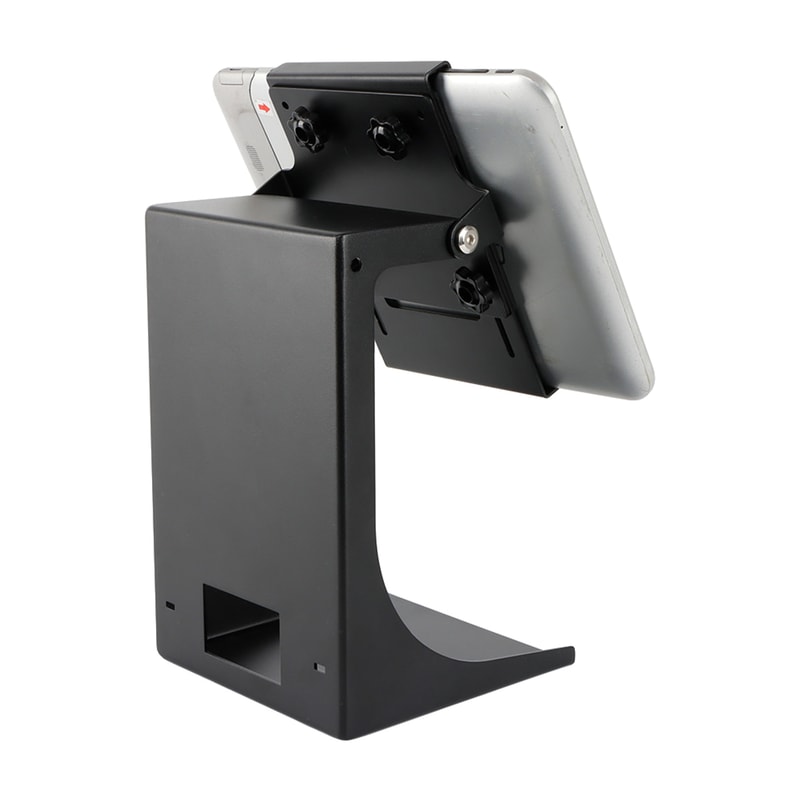

Tablet installed above the printer
The screen occupies the angled upper frame while the receipt printer sits on the lower shelf.

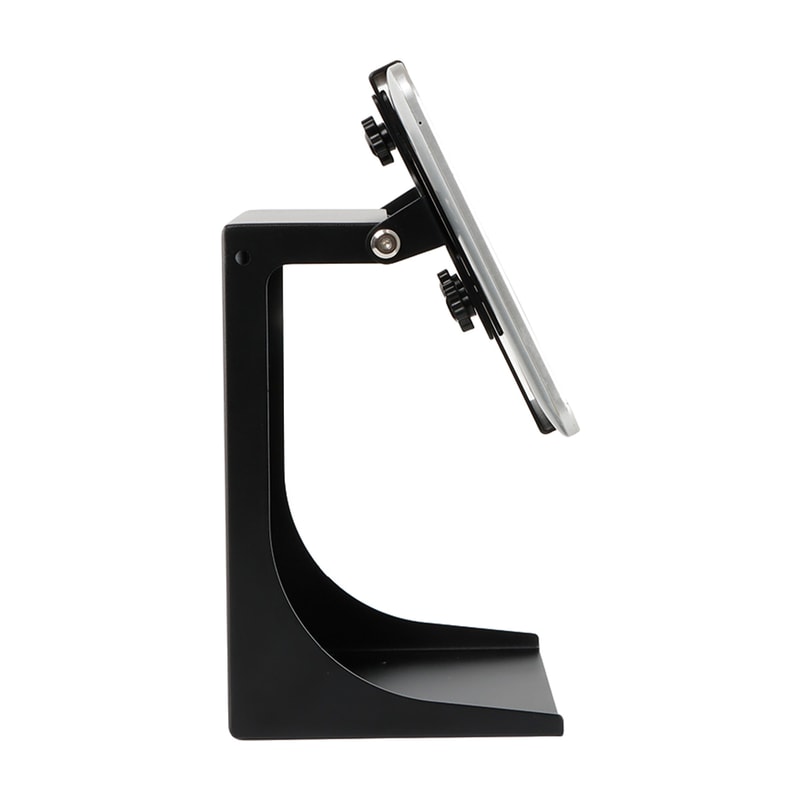

Side profile of the curved support
The display frame and printer shelf project from opposite levels of the bent steel body.

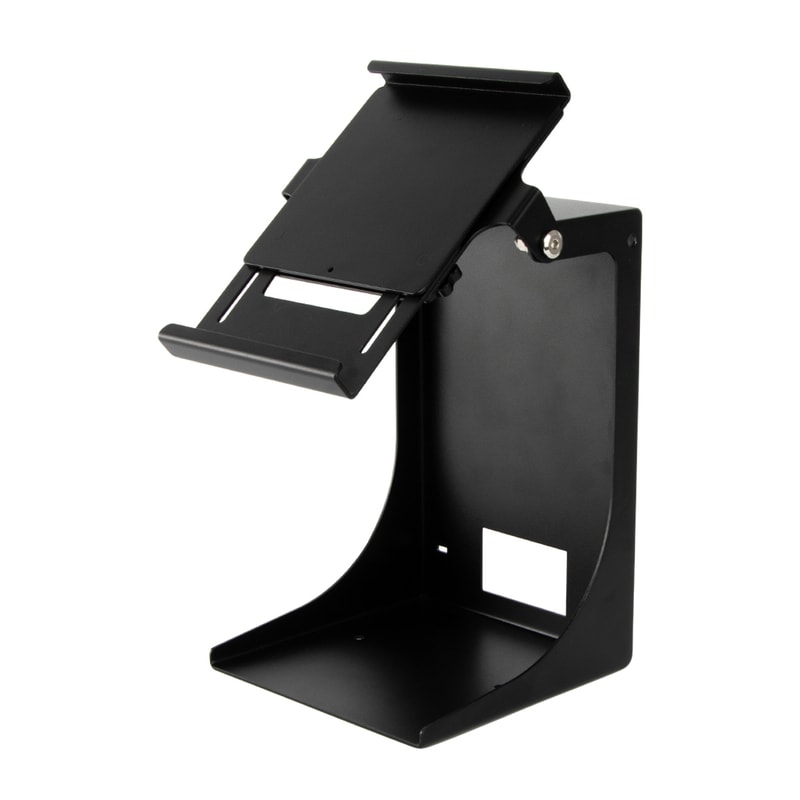

Empty TP01 frame
The device-free view records the upper mounting plate, lower shelf, cable opening, and base.
OEM customization in three clear steps.
Review the mount design
We confirm the enclosure, lock, viewing movement, cable direction, finish, and installation hardware.
Approve and produce
Confirm the sample, tablet fit, operation, and finish before the approved mount enters production.
Product specifications
The mount specification records the tablet dimensions, enclosure opening, lock, movement range, mounting method, finish, and quantity.
- Tablet compatibility
- 7–15 in; adjustment range: 13–22.8 cm
- Size
- 15 × 16 × 23 cm
- Material
- Metal
- Color
- Black
- Customization
- Available
- Model
- TP01
- VESA
- 100 × 100 mm
- Printer platform
- 14.5 × 15 cm
- Application
- Shops, cafés, restaurants, hotels, retail counters, and POS installations
What to send us for a TP01 mounting-system quote.
Share the required support positions, equipment details, and counter setup so we can lay out the mounting hardware.
Send us the equipment list
Share the model or dimensions for each display, printer, scanner, and payment terminal the supports need to hold.
Tell us the required layout
Send us the VESA patterns, accessory footprints, arm positions, height, viewing angles, cable exits, and service clearances.
Share the counter and order details
Tell us the counter footprint and fixing surface, plus finish, logo, packaging, quantity, and delivery destination.
Tell us the compatible model or dimensions, target quantity, customization needs, and delivery market.
Request a quote for this tablet and printer stand
Tell us the compatible model or dimensions, target quantity, customization needs, and delivery market.
